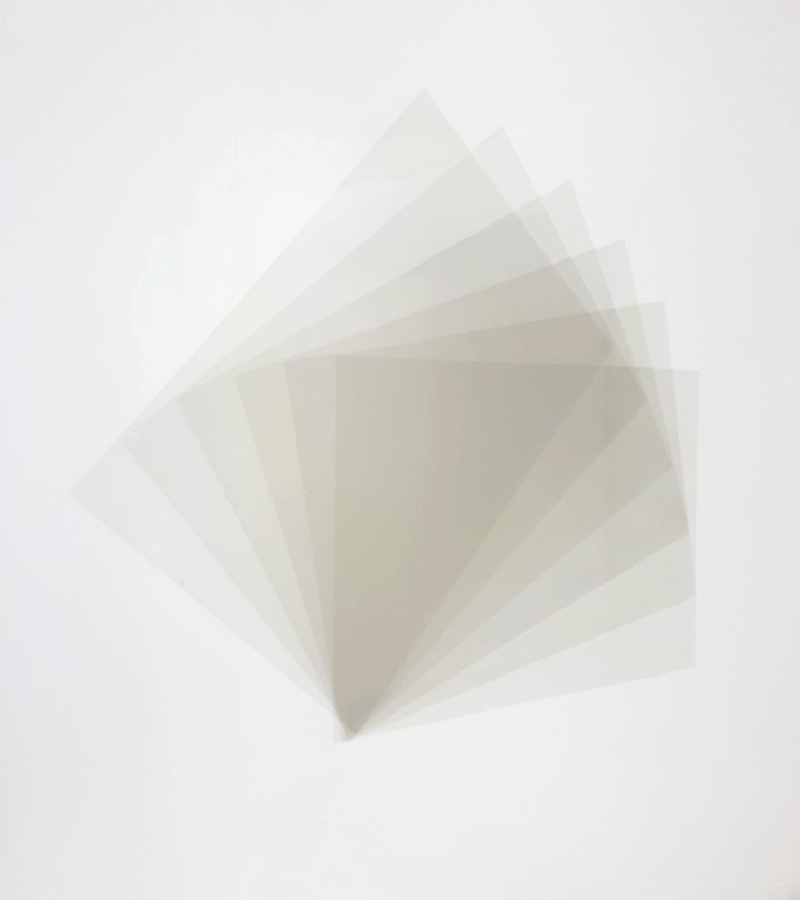

PLS(Heat Transfer Polyester Film) is a transparent
polyester film for heat transfer printing.
Non-static feeding is promised with our special treatment for
automatically feeding printing machine.
- Optically clear
- Compatible with all kind of ink
- Excellent dimensional stability & flatness
- Non-static effect
- No toxic substance is evaporated even at the burning temp.
HEAT & PRESS INFORMATION
TEMPERATURE
140°C(284°F)~160°C(320°F)
TIME
10 sec.
PRESSURE
High
Recommended Fabric: Leather, PVC, Cotton, Silk, Spandex, Nylon, Polyester etc.
SPECIFICATION
Standard Sizes
| Type | Thickness | Width | Length |
|---|---|---|---|
| Roll | 100㎛ | 500/1,000mm | 1,000m |
| Sheet | 100㎛ | 550mm × 700mm | |
other sizes are available on customer's demands.
Models
| Models | Color | Surface | Features |
|---|---|---|---|
| KP44GR | Transparent | Glossy/Glossy | - High glossy - No releasing agent applied |
Details
| Property | Unit | Value | Test Method | |
|---|---|---|---|---|
|
Base
Film |
Thickness | Gauge (㎛) |
400 (100) |
Hanse Method |
| Mechanical
Tensile Strength Elongation At Break |
Kg/mm² MD TD % MD TD |
21 24 190 115 |
ASTM D 882 ASTM D 882 |
|
|
Surface
Friction Coefficient |
µk ㎲ |
0.40 0.50 |
ASTM D 1894 |
|
|
T Optical
Haze Light Transmission Gloss |
% % % |
1.4 93 200 |
ASTM D 1003 ASTM D 1003 ASTM D 523 |
|
|
Finished
Film |
Thermal
Heat Shrinkage |
% MD TD |
≤ 0.3 ≤ 0.1 |
Hanse Method (150℃ x 30min) |
Unit Correlation: N/mm² = kg/mm² x 9.8
Psl = kg/mm² x 1422.3
| Models | Color | Surface | Features |
|---|---|---|---|
| KP44MTCGR | Transparent | Matt/Glossy | - Medium grade peeling force - Releasing agent coated on the matt side - Anti-curling coating on the glossy side |
Details
| Property | Unit | Value | Test Method | |
|---|---|---|---|---|
|
Base
Film |
Thickness | Gauge (㎛) |
400 (100) |
Hanse Method |
| Mechanical
Tensile Strength Elongation At Break |
Kg/mm² MD TD % MD TD |
21 24 190 115 |
ASTM D 882 ASTM D 882 |
|
|
Surface
Friction Coefficient |
µk ㎲ |
0.25 0.42 |
ASTM D 1894 |
|
|
Finished
Film |
Thickness
Base Film Matt Layer |
Gauge (㎛) (㎛) |
400 (100) (8±2) |
Hanse Method |
|
Optical
Haze Gloss |
% % |
92 9±2 |
ASTM D 1003 ASTM D 523 |
|
| Release Force | g/19mm | 400±100 | 3M Magic Tape No 810 | |
| Thermal
Heat Shrinkage |
% MD TD |
≤ 0.3 ≤ 0.1 |
Hanse Method (150℃ x 30min) |
Unit Correlation: N/mm² = kg/mm² x 9.8
Psl = kg/mm² x 1422.3
| Models | Color | Surface | Features |
|---|---|---|---|
| KP44BMT | Transparent | Matt/Matt | - Medium grade peeling force
- Releasing agent coated on both sides |
Details
| Property | Unit | Value | Test Method | |
|---|---|---|---|---|
|
Base
Film |
Thickness | Gauge (㎛) |
400 (100) |
Hanse Method |
| Mechanical
Tensile Strength Elongation At Break |
Kg/mm² MD TD % MD TD |
21 24 190 115 |
ASTM D 882 ASTM D 882 |
|
|
Surface
Friction Coefficient |
µk ㎲ |
0.25 0.42 |
ASTM D 1894 |
|
|
Finished
Film |
Thickness
Base Film Matt Layer |
Gauge (㎛) (㎛) |
400 (100) (12±5) |
Hanse Method |
|
Optical
Haze Gloss |
% % |
92 9±2 |
ASTM D 1003 ASTM D 523 |
|
| Release Force | g/19mm | 400±100 | 3M Magic Tape No 810 | |
|
Thermal
Heat Shrinkage |
% MD TD |
≤ 0.3 ≤ 0.1 |
Hanse Method (150℃ x 30min) |
Unit Correlation: N/mm² = kg/mm² x 9.8
Psl = kg/mm² x 1422.3
| Models | Color | Surface | Features |
|---|---|---|---|
| MTBGR25 | Translucent | Matt/Glossy | - Hot peel application
- Releasing agent coated on printing side - Direct ink printing is acceptable - Outstanding performance for urethane ink or water based ink |
Details
| Property | Unit | Value | Test Method | |
|---|---|---|---|---|
|
Finished
Film |
Thickness | ㎛ | 110 ± 3 | Hanse Method |
| Release Force | gf | 250 ± 50 |
3M 810 19mm
ASTM D903 |
|
|
Heat Shrinkage
MD TD |
% |
≤ 0.3 ≤ 0.1 |
Hanse Method (150℃ x 30min) |
|
| Glossiness | Gu | 6.5 ± 2.0 | ASTM D523 | |
|
Surface
Roughness Tension |
Ra Dyne |
0.5 ± 0.2 ≥ 32 |
DIN 4768 ASTM D2578 |
|
| Adhesive Force | - | 5B | Hanse Method | |
| Solvent Resistance | - | Pass | Hanse Method |
| Models | Color | Surface | Features |
|---|---|---|---|
| M4S5 | Translucent | Matt/Light matt | - Cold peel application
- Outstanding performance for silicone ink |
Details
| Property | Unit | Value | Test Method | |
|---|---|---|---|---|
|
Finished
Film |
Thickness | ㎛ | 110 ± 2 | Hanse Method |
| Release Force | gf | 60 ± 20 |
3M 810 19mm
ASTM D903 |
|
|
Heat Shrinkage
MD TD |
% |
≤ 0.3 ≤ 0.1 |
Hanse Method (150℃ x 30min) |
|
| Glossiness | Gu | 8.0 ± 1.5 | ASTM D523 | |
|
Surface
Roughness Tension |
Ra Dyne |
1.0 ± 0.3 ≥ 34 |
DIN 4768 ASTM D2578 |
|
| Adhesive Force | - | 5B | Hanse Method | |
| Solvent Resistance | - | Pass | Hanse Method |
| Models | Color | Surface | Features |
|---|---|---|---|
| SMT-P5 | Translucent | Matt/Light matt | - Hot peel application
- Outstanding performance for silicone ink |
Details
| Property | Unit | Value | Test Method | |
|---|---|---|---|---|
|
Finished
Film |
Thickness | ㎛ | 110 ± 2 | Hanse Method |
| Release Force | gf | 40 ± 15 |
3M 810 19mm
ASTM D903 |
|
|
Heat Shrinkage
MD TD |
% |
≤ 0.3 ≤ 0.1 |
Hanse Method (150℃ x 30min) |
|
| Glossiness | Gu | 7.0 ± 1.5 | ASTM D523 | |
|
Surface
Roughness Tension |
Ra Dyne |
0.5 ± 0.1 ≥ 32 |
DIN 4768 ASTM D2578 |
|
| Adhesive Force | - | 5B | Hanse Method | |
| Solvent Resistance | - | Pass | Hanse Method |
Unit Correlation: N/mm² = kg/mm² x 9.8
Psl = kg/mm² x 1422.3
| Models | Color | Surface | Features |
|---|---|---|---|
| DTM-H2 | Translucent | Matt/Glossy | - Hot peel application
- For digital printing |
Details
| Property | Unit | Value | Test Method | |
|---|---|---|---|---|
|
Finished
Film |
Thickness | ㎛ | 108 ± 3 | Hanse Method |
| Release Force | gf | ≤ 20 |
3M 810 19mm
ASTM D903 |
|
| Glossiness | Gu | 10 ± 3 | ASTM D523 | |
|
Surface
Roughness Tension |
Ra Dyne |
0.4 ± 0.2 ≥ 38 |
DIN 4768 ASTM D2578 |
