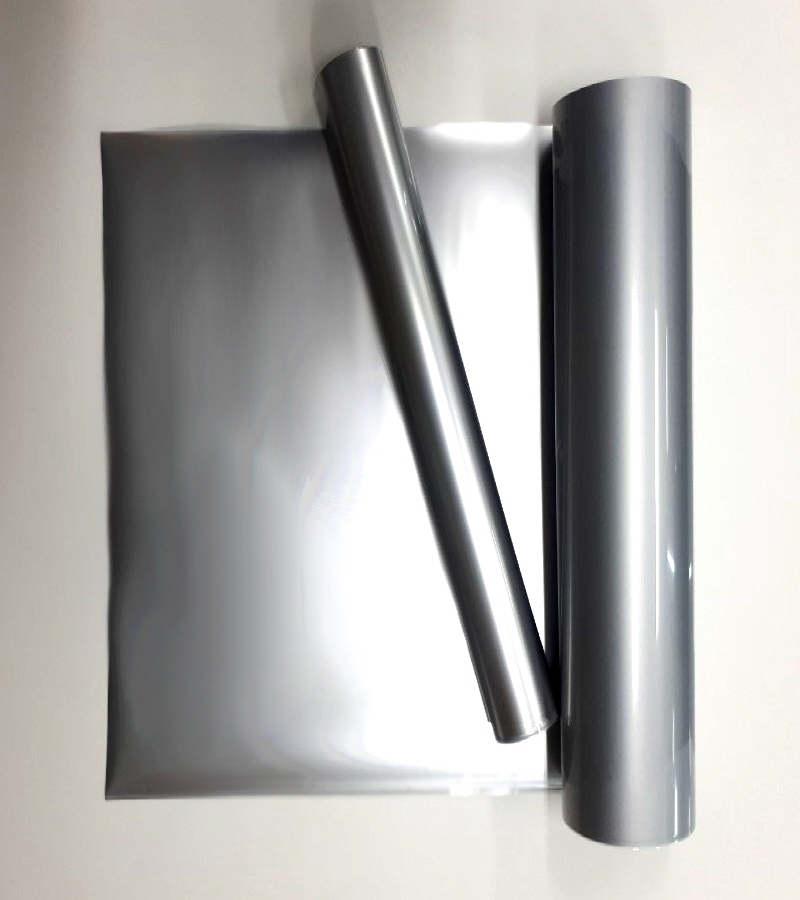

SRT is highly SOFT and ELASTIC.
SRT (Silicone Reflective Transfer Film)'s Reflectivity is maintained PERMANENTLY.
the original colors of the film are vividly maintained.
- Plotter cutting usage
- Hot melt adhesive treated
- No glass-bead products
- Silicone single layer
- Permanent reflectivity
- High elasticity
HEAT & PRESS INFORMATION
TEMPERATURE
150°C(302°F)
TIME
10 sec.
PRESSURE
High
Application: Decoration of the Sportswear, Jacket, T-shirt, Shoes, Cap, and Rucksack.
SPECIFICATION
Standard Size
| Type | Thickness | Width | Length |
|---|---|---|---|
| Roll | 250㎛ | 500/1,000mm | 50m |
other sizes are available on customer's demands.
Process
| Color | Process |
|---|---|
| Gray-Silver |
1. Cutting the film to your design with cutting plotter
2. Using a heat press to transfer your design * The film has own color (Gray-Silver) itself. |
Retro-Reflection [cd/lx*m^2]
| *O.A | *E.A | *C.o.R |
|---|---|---|
| 12' | 5° | 5.5 |
| 20' | 5° | 5.4 |
| 1° | 5° | 4.8 |
| 1°30' | 5° | 4.6 |
*O.A _ Observation Angle
*E.A _ Entrance Angle
*C.o.R _ Coefficient of Retroreflection
